Examples of intermediate complexity that demonstrate useful patterns while remaining relatively readable.

1) Two-field FM synthesis

Combines a carrier and modulator so the carrier phase becomes

$$c(t) = A_c e^{i(\omega_c t + 0.5\,\sin \omega_m t)},$$

giving a modulation index of $0.5$ controlled by the mixer.

local sim = require("libsimcore")
local N = 512
local dt = 0.001
local ctx = sim.sim_create()

sim.sim_set_timestep(ctx, dt)
sim.sim_set_visual_mode(ctx, "phase_portrait")

local carrier = sim.sim_add_field(ctx, {N}, {
    type = "complex_double",
    fill = {0, 0}
})

local mod = sim.sim_add_field(ctx, {N}, {
    type = "complex_double",
    fill = {0, 0}
})

sim.sim_add_stimulus_operator(ctx, carrier, {
    type = "stimulus_sine",
    amplitude = 0.2,
    wavenumber = 0.25,
    omega = 0.3,
    scale_by_dt = true
})

sim.sim_add_stimulus_operator(ctx, mod, {
    type = "stimulus_sine",
    amplitude = 0.1,
    wavenumber = 0.5,
    omega = 0.05,
    scale_by_dt = false
})

sim.sim_add_mixer_operator(ctx, carrier, mod, carrier, {
    mode = "fm",
    rhs_gain = 0.5,
    scale_by_dt = true
})

local integrator = sim.sim_create_context_integrator(ctx, "rkf45", {
    initial_dt = dt,
    adaptive = false
})

sim.sim_set_integrator(ctx, integrator)

return ctx

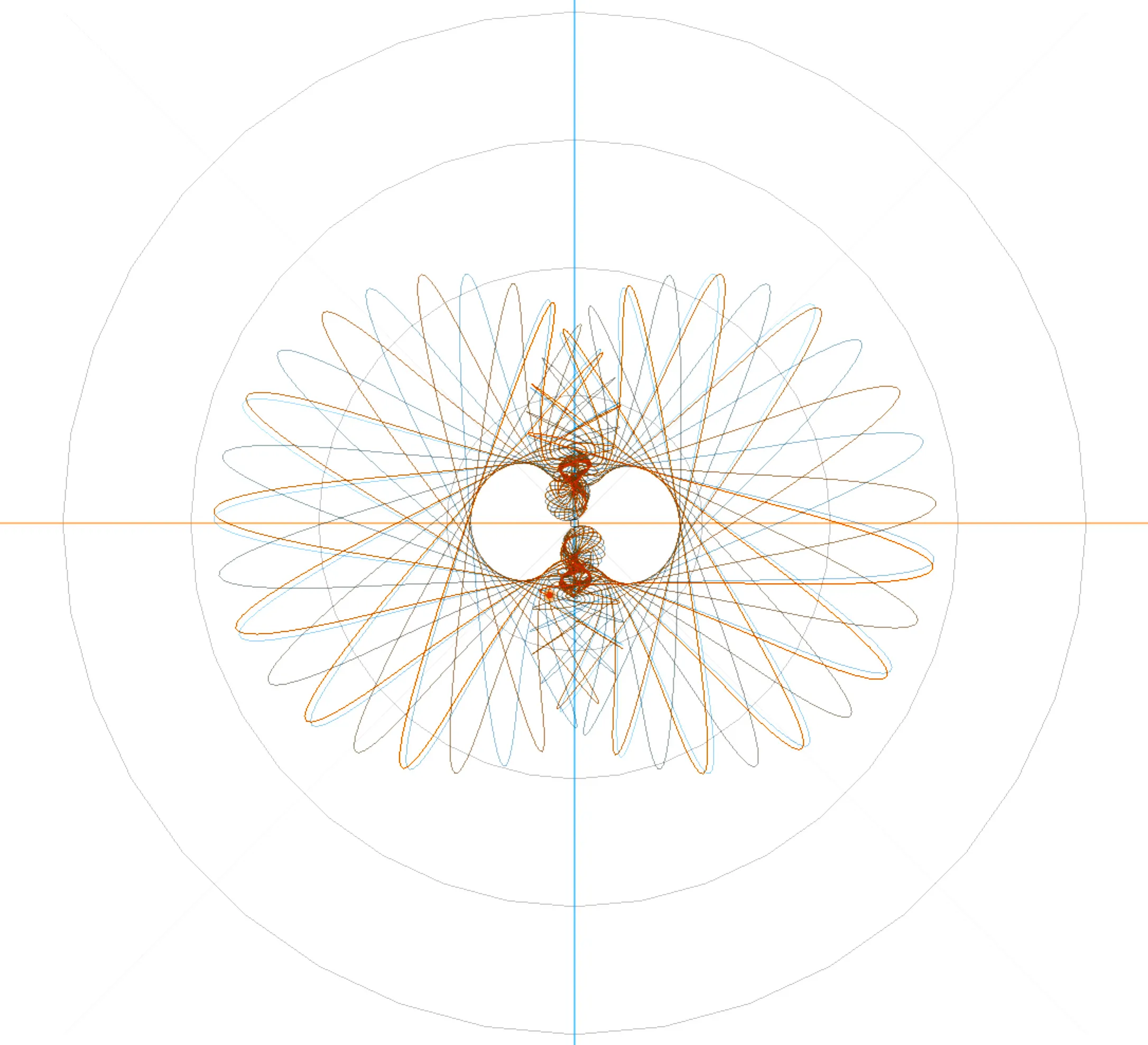

Example output:

2) Dispersion Playground

Tune coefficient and order of a dispersion operator applied to a chirped stimulus.

local sim = require("libsimcore")
local ctx = sim.sim_create()
local dt = 0.0125
local N = 512

sim.sim_set_timestep(ctx, dt)
sim.sim_set_visual_mode(ctx, "waveform")

local field = sim.sim_add_field(ctx, {N}, {
    type = "complex_double",
    fill = {0, 0}
})

sim.sim_add_stimulus_operator(ctx, field, {
    type = "stimulus_chirp",
    amplitude = 0.25,
    wavenumber = 0.07,
    omega = -0.27,
    phase = math.pi / 4,
    kdot = -0.096,
    wdot = 0.012,
    scale_by_dt = true
})

sim.sim_add_dispersion_operator(ctx, field, {
    coefficient = 0.75,
    order = 1.05,
    spacing = 0.02
})

local integrator = sim.sim_create_context_integrator(ctx, "rkf45", {
    initial_dt = dt
})

sim.sim_set_integrator(ctx, integrator)

return ctx

3) Phase modulation with feedback

Implements a phase modulation system with feedback, where the phase of field_2 is modulated by field_1, which in turn is influenced by field_2’s previous state through a mixer operator with feedback parameters.

local sim = require("libsimcore")
local N = 768
local dt = 0.025

local ctx = sim.sim_create()

sim.sim_set_timestep(ctx, dt)
sim.sim_set_visual_mode(ctx, "phase_portrait")

local field_1 = sim.sim_add_field(ctx, {N}, {
    type = "complex_double",
    fill = {0.0, 0.0}
})

local field_2 = sim.sim_add_field(ctx, {N}, {
    type = "complex_double",
    fill = {0.0, 0.0}
})

sim.sim_add_mixer_operator(ctx, field_2, field_1, field_1, {
    mode = "linear",
    lhs_gain = 0,
    rhs_gain = 0
})

sim.sim_add_stimulus_operator(ctx, field_2, {
    type = "stimulus_sine",
    amplitude = 0.5,
    wavenumber = 1,
    omega = -0.43,
    spacing = 1,
    rotation = math.pi/2
})

sim.sim_add_stimulus_operator(ctx, field_2, {
    type = "stimulus_spectral_lines",
    amplitude = 0.2,
    wavenumber = 1,
    omega = 0.01,
    phase = 4.8,
    spacing = 1,
    harmonic_power = 0.9,
    harmonic_count = 2
})

sim.sim_add_stimulus_operator(ctx, field_1, {
    type = "stimulus_sine",
    amplitude = 1,
    wavenumber = 1,
    omega = -0.25,
    spacing = 0.18,
    rotation = 0
})

sim.sim_add_mixer_operator(ctx, field_2, field_1, field_1, {
    mode = "pm",
    lhs_gain = 1.0,
    rhs_gain = 1.0,
    feedback_decay = 1.0,
    feedback_strength = 1.8
})

local integrator = sim.sim_create_context_integrator(ctx, "rkf45", {
    initial_dt = dt
})

sim.sim_set_integrator(ctx, integrator)

return ctx

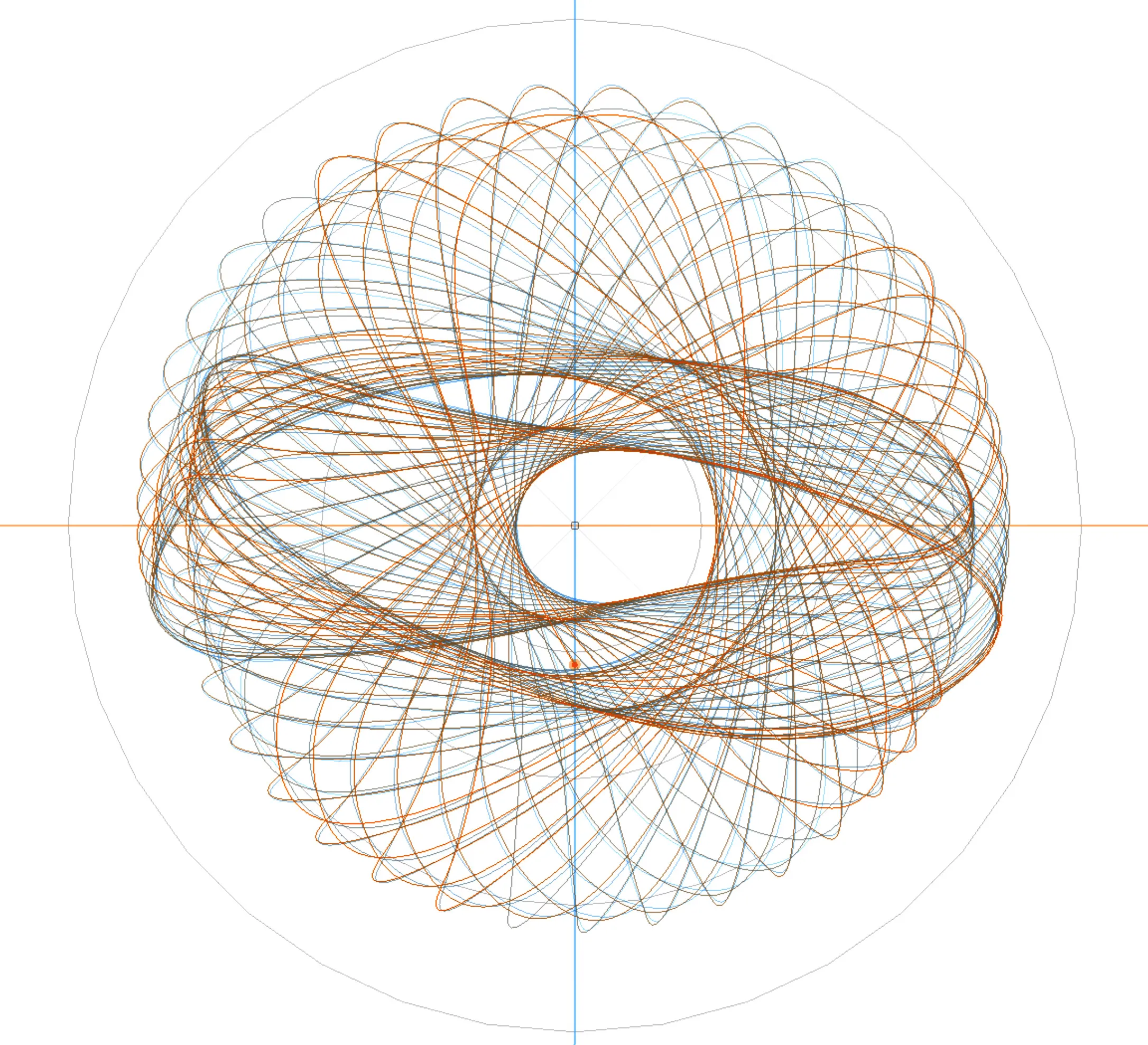

Example output:
